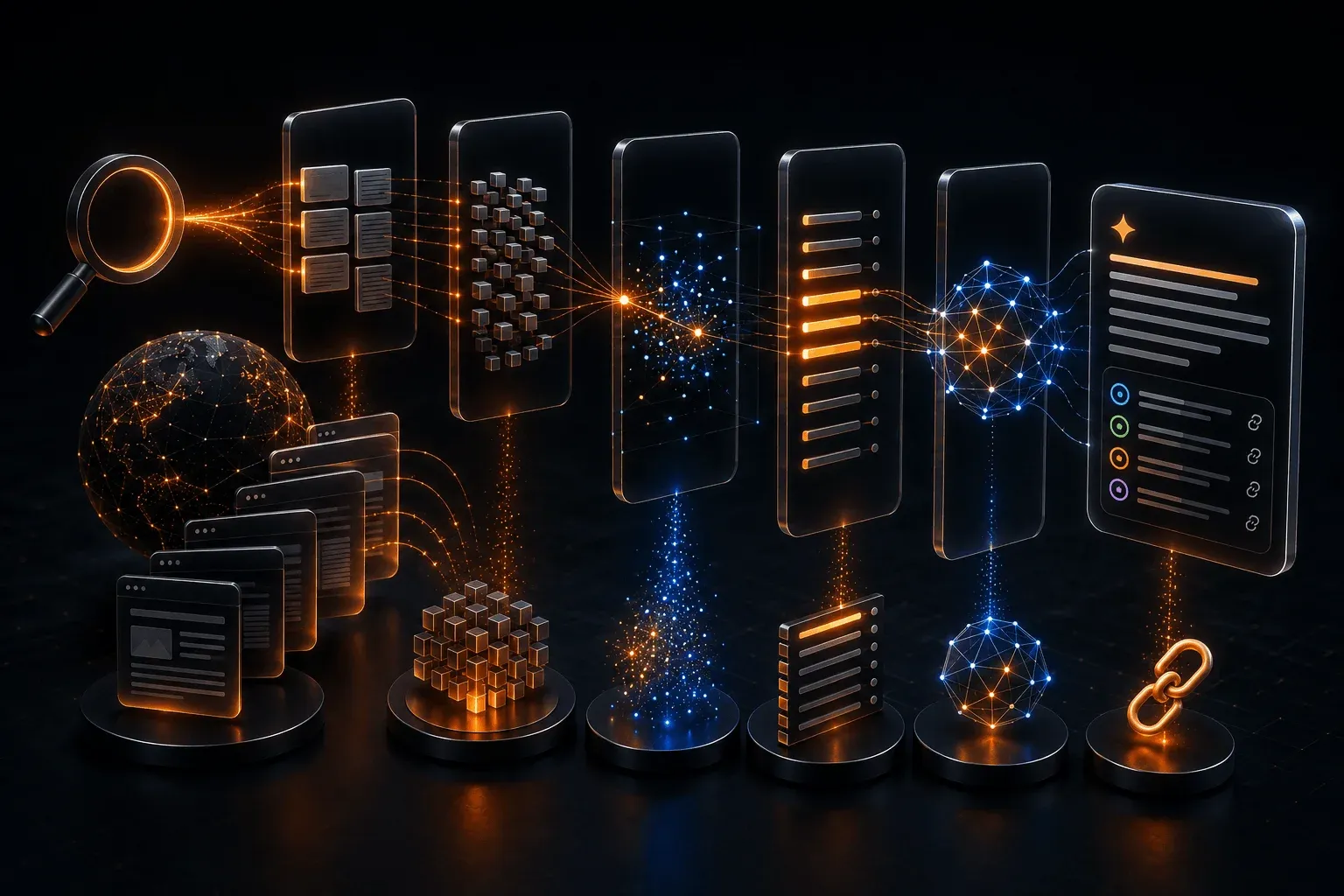

Diagram of the RAG pipeline showing content moving through chunking, embeddings, retrieval, re-ranking, and final AI answer with citations

Blog

How AI Search Engines Actually Pick Their Sources (Passage-Level Retrieval, Explained)

BalochDev 9 min read

AI search engines don't rank whole pages — they retrieve passages. Behind every AI answer is a pipeline: the engine turns your question and the web's content into numerical vectors called embeddings, finds the passages whose meaning sits closest to the question, re-ranks the strongest candidates, and writes an answer that cites a handful of them. This is Retrieval-Augmented Generation (RAG), and once you understand its steps — chunking, embeddings, semantic matching, re-ranking, grounding — you understand exactly why some content gets cited and most doesn't.

We build these retrieval systems, so this is the view from inside the machine. Follow the pipeline and the optimization rules stop being guesswork.

The core shift: from pages to passages

Traditional search ranks documents. You optimize a page, it earns a position, users click. AI search works one level down. It breaks content into small blocks and retrieves the specific passage that best answers a specific question, then quotes it.

That's why "I rank #1" and "AI cites me" have become different outcomes. The engine isn't asking "which page is most authoritative overall?" It's asking "which passage most precisely answers this?" A brilliant page with no clean, self-contained passage can lose to a lesser page that has one. Everything below explains the mechanism behind that — the same underlying pattern we cover in Why Ranking #1 on Google No Longer Gets You Cited by ChatGPT.

The pipeline, step by step

Here is what happens between your question and the cited answer. Different engines vary in the details, but the shape — described plainly in Ahrefs' explainer on how AI decides which pages to search and cite — is remarkably consistent.

1. Chunking — content is split into passages

Before anything can be retrieved, the web's content is divided into chunks — paragraphs, sections, or passages. The engine indexes these chunks, not whole pages. If your content is one long, undifferentiated wall of text with no clear section boundaries, it chunks badly, and badly-chunked content is hard to retrieve cleanly. Clear headings, short focused paragraphs, and one idea per block make your content chunk-friendly.

2. Embeddings — text becomes meaning-as-numbers

Each chunk is converted into an embedding: a long list of numbers (a vector) that represents the meaning of the text, not its exact words. Passages with similar meaning end up close together in this mathematical space; unrelated passages sit far apart. This is what lets AI match "how do I get found by AI" to a passage about "generative engine optimization" even though they share almost no keywords. Meaning, not string-matching, is the currency.

3. Query understanding and fan-out

Your question gets the same treatment — embedded into a vector — and is often decomposed into multiple sub-questions. Google's AI Mode has been documented breaking a query into roughly 8–12 sub-queries, a pattern we cover in detail in What Is a Google AI Overview, and How Does It Choose What Goes In?. Each sub-question becomes its own retrieval, which is why thorough content can be pulled in for angles you never explicitly targeted.

4. Retrieval — nearest-neighbour search

Now the engine finds the chunks whose embeddings are closest to the question's embedding — a "nearest-neighbour" search in vector space, usually measured by cosine similarity (how close two vectors point in the same direction). The closer the meaning, the higher the retrieval score. Passages need to clear a fairly high similarity bar to be pulled into the candidate set at all — researchers commonly use thresholds in the high-0.8-to-0.9 range to distinguish a genuine match from a loosely related one. This is the step where semantic clarity pays off: a passage that answers the question directly and unambiguously scores higher than one that circles it.

5. Re-ranking — a second, sharper pass

The first retrieval returns many candidate passages. A re-ranking model then scores them more carefully for how well they actually answer the question — not just how topically similar they are. Re-ranking is where "close enough" passages get filtered out in favour of the ones that resolve the question cleanly, are well-structured, and come from sources the system trusts. Freshness, authority, and clarity all weigh in here.

6. Synthesis and grounding — the answer gets written

Finally, the language model writes the answer, grounded in the top re-ranked passages, and attaches citations to the sources it used. Grounding is the safeguard that keeps the answer tied to retrieved evidence rather than invented from the model's memory — and it's why being in the retrieved set is the whole game. If your passage isn't retrieved, you cannot be cited, no matter how good it is.

That end-to-end loop — chunk, embed, retrieve, re-rank, synthesize, cite — is RAG. Every mainstream AI search engine runs some version of it.

Worth knowing, since it cuts against a comforting assumption: independent research tracking AI citations has found a large share of cited sentences can't actually be traced back to a single passage in the source — the model is often synthesizing across a page's argument and terminology rather than lifting one clean quote. Clean, self-contained passages still raise your odds of being that traceable source, but grounding isn't a guarantee of verbatim quoting.

Why this rewards specific content properties

Work backward from the pipeline and the "rules" of AI visibility become obvious rather than mystical:

  • Self-contained passages win because retrieval operates on chunks. A block that makes sense on its own, without the paragraph before it, retrieves cleanly. Passages in the roughly 130–170-word range are commonly cited in GEO research as a sweet spot — long enough to answer fully, short enough to lift whole.

  • Answer-first structure wins because re-ranking rewards passages that resolve the question directly. Bury the answer and you lose the re-rank.

  • Semantic clarity beats keyword stuffing because matching happens in meaning-space. Say the thing plainly; synonyms and context help more than repetition.

  • One idea per section wins because mixed-topic blocks produce muddy embeddings that sit nowhere useful in vector space.

  • Verifiable, specific claims win at the re-rank and grounding stages, where the system prefers evidence it can trust.

None of this is a trick. You're making your content cleanly retrievable — which happens to also make it clearer for humans.

How the major engines differ

The pipeline is shared, but each engine sources differently — worth knowing so you don't over-optimize for one:

  • ChatGPT leans on its training data first, then augments with live web search when a query needs recency. It fetches with its own crawler (OAI-SearchBot) and tends to fan queries out widely. Practical implication: brand mentions across the web that shaped its training and its live results both matter. (Full breakdown: How to Get Cited by ChatGPT Search.)

  • Perplexity runs its own search index and cites aggressively — commonly citing several sources per answer — with a strong recency bias and very low latency. It's usually the fastest engine to start citing a new, well-structured page.

  • Google AI Overviews / AI Mode / Gemini ground answers in Google's index using query fan-out, inheriting Google's ranking and trust signals. Strong technical SEO feeds these directly.

  • Claude and other assistants retrieve from the live web when browsing is enabled and cite their sources, following the same retrieve-then-ground pattern.

The strategic takeaway: because they share the underlying pipeline, optimizing the fundamentals — chunk-friendly structure, semantic clarity, verifiable answers — earns visibility across all of them at once. Engine-specific tuning is a refinement, not a starting point.

What this means for how you write

If you take one thing from the mechanism, take this: write for extraction, not just for reading. Structure every page as a set of self-contained, answer-first passages, each cleanly about one thing, each stating its answer plainly enough that a machine matching on meaning can lift it whole. That single habit satisfies chunking, embedding, retrieval, and re-ranking all at once.

The full playbook for turning this into practice is in our pillar guide, How to Get Your Business Found by AI Search in 2026 — and before optimizing content, confirm the engine can even fetch your pages with the 5-minute reachability check.

Frequently asked questions

What is passage-level retrieval? It's the process by which AI search engines retrieve and cite specific blocks of text (passages) rather than whole pages. Content is split into chunks, converted to embeddings, matched to the question by meaning, re-ranked, and the best passages are quoted in the answer.

What are embeddings, simply? Embeddings are numerical representations of meaning. Each passage becomes a vector of numbers, and passages with similar meaning sit close together, letting AI match a question to relevant content even without shared keywords.

What is RAG? Retrieval-Augmented Generation — the pattern where an AI retrieves relevant passages from a data source, then generates an answer grounded in them, with citations. It's the architecture behind most AI search.

How do I make my content more retrievable? Write self-contained, answer-first passages of roughly 130–170 words, one idea each, with clear headings and plainly stated answers. That structure retrieves and re-ranks well across every major engine.

Do different AI engines need different content? Largely no. They share the retrieve-and-ground pipeline, so strong passage-level fundamentals work everywhere. The engines differ mainly in where they source (own index, training data, or Google's index) and how fast they pick up new content.

This guide is maintained by BalochDev, an AI-first software development studio. We build products — and the sites that sell them — to be found by both people and machines. Last updated 9 July 2026.
